Custom Divers Quick Release Coupling (Cylinders/Accessories)

$41.95$254.95

These quick release couplings are specially designed to give the diver easier mounting of equipment and are available in two different sizes; the larger CD-CDQR4 for mounting cylinders, and the smaller CD-CDQR5 for mounting pony cylinders and accessories.

SKU: CD-CDQRX Categories: ,
Custom Divers Logo

Description

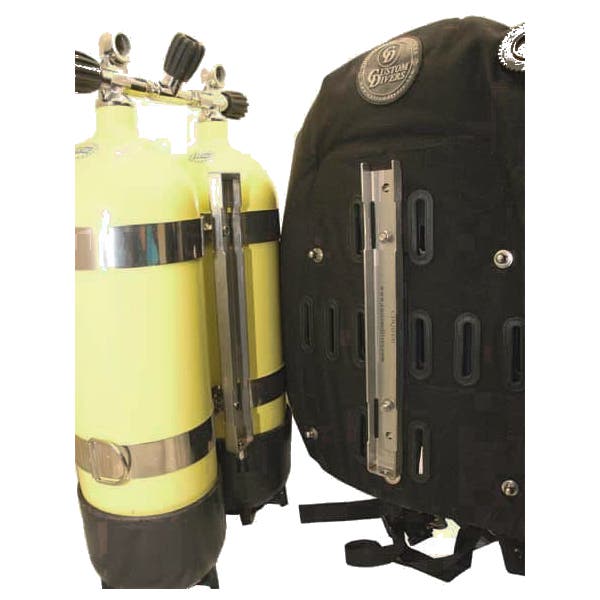

CD-CDQR4 – Tank/Wing Quick Release Coupling

The CD-CDQR4 cylinder quick-release coupling incorporates a unique spring action combined locking system (patent pending).

This dual-purpose coupling offers a new way in which to mount your wing system
to twin or single-cylinder configurations. This unit can also be used to mount a pony tank
and/or torch battery housing.

Fitting is straightforward; with the additional fittings provided, mount the male part of the coupling in the middle of your twin-set via the bolts that secure your stainless steel cylinder twinning bands. Alternately, mount your single tank via cam bands or stainless steel jubilee bands (not included). The female half of the coupling is attached to the wing system by using the bolt kit provided.

Next, simply sleeve the coupling together. Before mating the couplings together, lift the
locking pin handle and, once fully mated, release and ensure that the couplings are
locked together. Now screw the pull handle clockwise so the system is fully locked.

This coupling is particularly useful when mixing and matching cylinder sets for different
gas mixes and when refilling. Additional male and female fittings are available separately for this reason.

Bracket size: 390 x 44 x 22mm.
Weight: 0.9kg.
Material: Marine-grade stainless steel (bracket and bolt kit).



CD-CDQR5 – Quick Release Coupling

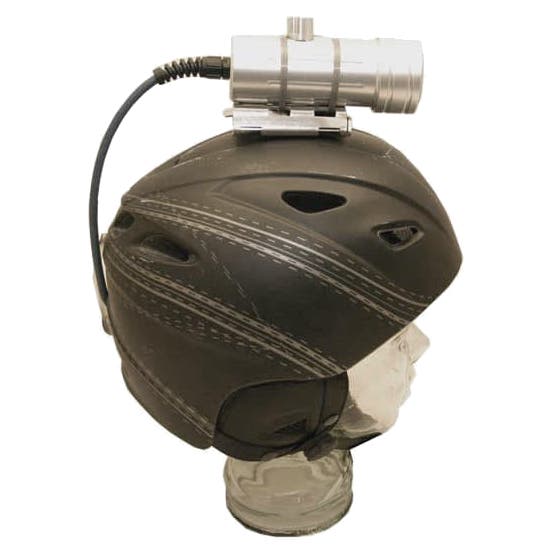

The smaller size, CD-CDQR5, is mainly used to mount pony/argon tanks
and/or torch battery housings and is light enough for mounting equipment to helmets.

The male half of the coupling may be fixed by bolts through the M6 holes for mounting to a flat surface or via the slots with stainless steel jubilee bands (not included).

The female half of the coupling may be mounted via the slots utilising stainless steel jubilee bands (not included).

The coupling has a spring lever lock and once the couplings are sleeved together this automatically locks the two halves together. To release simply depress the lever to detach.

Bracket size: 90 x 42 x 20mm.
Weight: 0.2kg.
Material: Marine-grade stainless steel (bracket and bolt kit).

Additional information

Weight N/A
Dimensions N/A
Model

CD-CDQR4, CD-CDQR5

Configuration

Male Only, Female Only, Male & Female (Complete Set)
